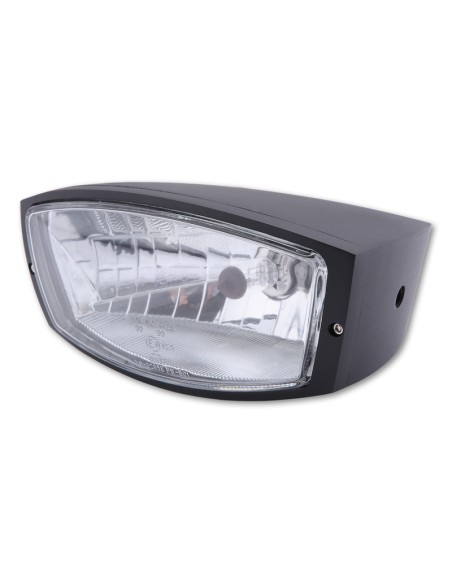

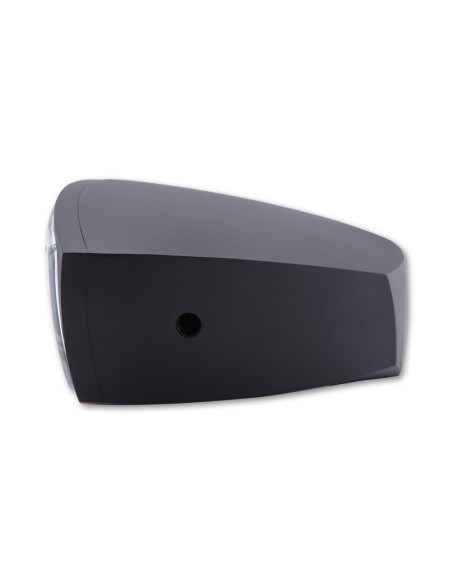

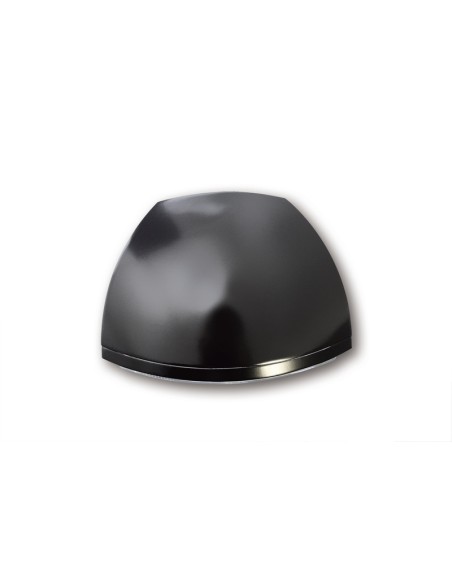

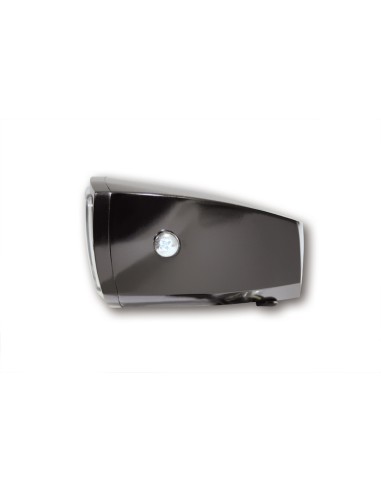

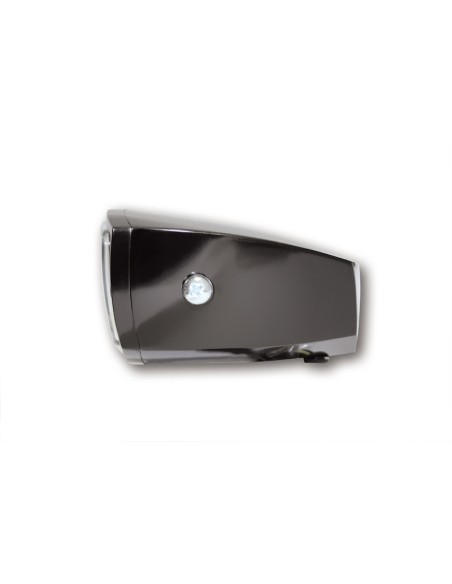

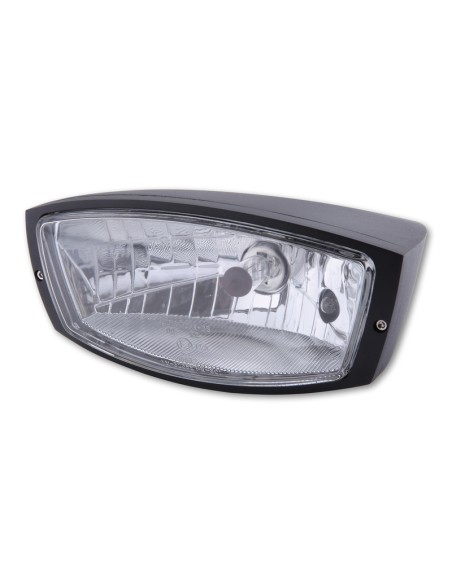

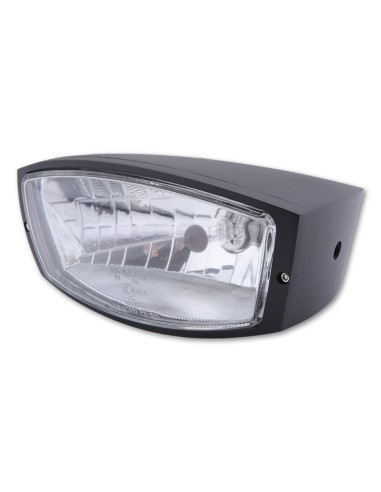

HIGHSIDER OREGON main headlight for side mounting
H4 halogen main headlight including parking light and a galvanized metal housing in black or chrome-plated orderable. The reflector emits a bright, symmetrical light - for good road illumination and optimum visibility. The trapezoidal headlight captivates by its soft, curved lines and the noble high-gloss housing, E-approved.
See and be seen give your bike an unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!
Technical specifications:
Lamps: H4, 12 V 60/55W
Width: 195 mm
Height: 95 mm
Depth: 155 mm (with glass)
Fixing: lateral, 3-fold adjustable with M 10 x 1.5 mm fixing bolts.
Connections H4 headlight:
Black cable = Ground (-)
Yellow cable = Low beam (+)
Blue cable = High beam (+)
Connectors Parking light:
Black cable = Ground (-)
Green cable = Plus (+)
Scope of supply: 1 unit Spare parts:
Installation: 226-155 Clear glass H4 symmetrical
Spare bulb: 209-105 H4
