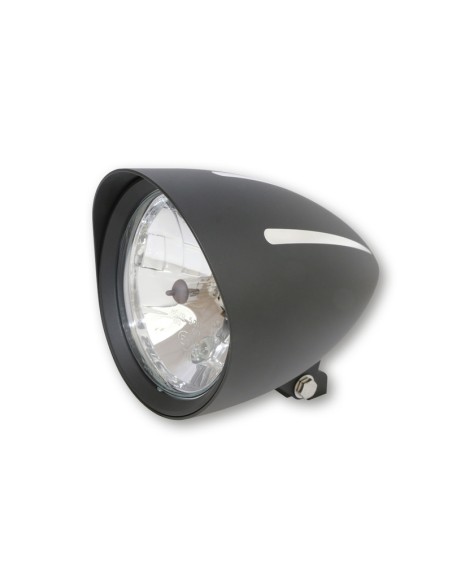

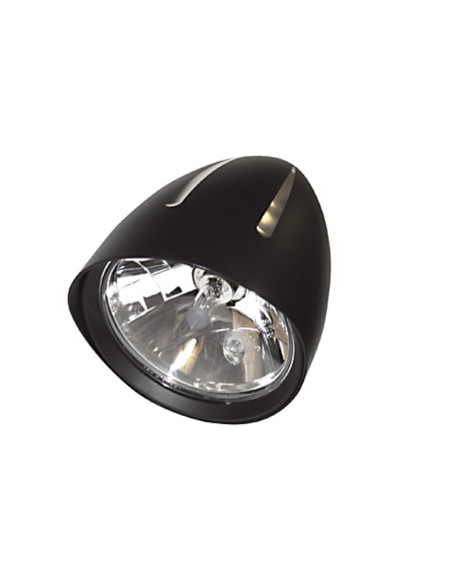

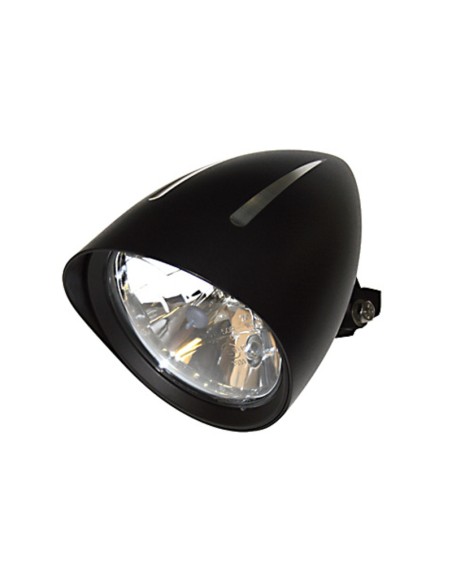

HIGHSIDER 5 3/4 inch headlight CLASSIC 1 EXTREME for lower mounting

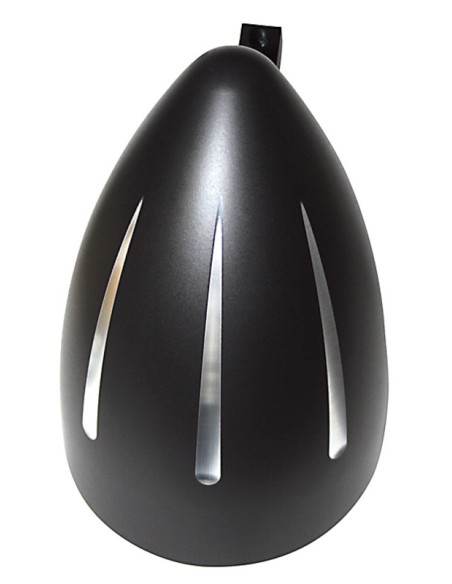

H4 halogen headlight with a high quality black aluminum housing with 3 distinctive CNC milled grooves and a nostalgic umbrella (length: about 25 mm) in retro look. The headlight has an asymmetric prismatic reflector - only approved for right-hand traffic - and parking light, E-approved.
Exciting give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a highlight in any case!
Technical data:
Lamps: H4, 12 V 60/55 W
Fixing: bottom
Diameter: 157 mm
Depth: 220 mm
Holder centre fixing screw to front: 127 mm
Holder clearance: 18 mm
Fixing: bottom
Connections:
White cable = dipped beam (+)
green cable = mass of H4 bulb
blue cable = high beam (+)
brown cable = parking light (+)
black cable = mass of parking light (-)
delivery scope: 1 piece, consisting of headlight and lamp
Notes:
Asymmetrical reflector - only approved for right-hand traffic!.
Replacement insert: 226-131
