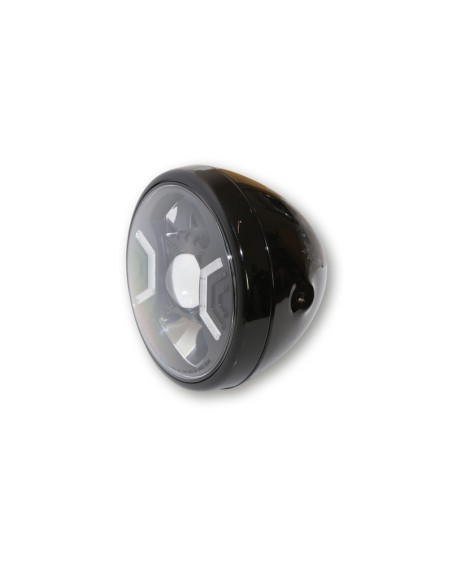

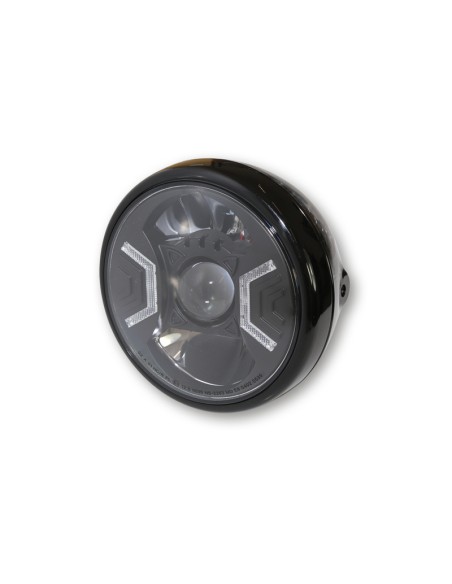

HIGHSIDER Reno Type 2 Headlight LED - 7"

HIGHSIDER 7 inch LED headlight RENO TYPE 2 for side mounting

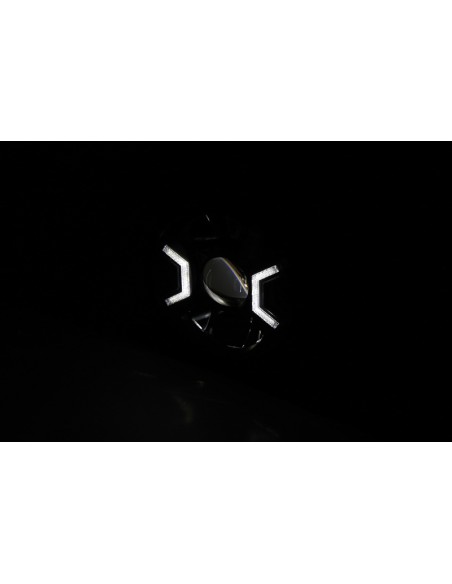

Innovative Power-LED headlight with parking light function and round, clear glass. The metal housing ishigh-gloss black lacquered and has a black, asymmetrical insert - approved for right-hand traffic only - or the housing is chrome-plated and has achrome-plated, asymmetrical - only approved for right-hand traffic. E-approved.

Our highlights - give your bike a distinctive style! The fancy design and theperfect technology of the HIGHSIDER headlight series make it a highlight in any case!

dimensions headlight:
housing diameter: 200 mm
diameter of headlight insert: 178 mm
housing depth: 160 mm
distance of the mounting holes (middle - middle): 170 mm
distance mounting hole (middle) to end of housing: approx. 90 mm
mounting: laterally withM8 threaded bolt

Current consumption at 12.5 Volt DC:
Dipped beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1450 Lumen
High beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1582 Lumen

Connectors on reflectorin headlamp housing:
Black cable = ground (-)
Red cable = high beam (+)
Blue cable = low beam (+)
Additional 2 cables for parking light: Black = ground (-), red = parking light(+)

Scope of delivery: 1 piece including mating connector (connection plug) with 210 mm cable, for H4 halogen bulbs, connections:
Green cable = ground (-)
Blue cable = high beam (+)
White cable =Dipped beam (+)

Note:
Application asymmetrical, approved for right-hand traffic only.
