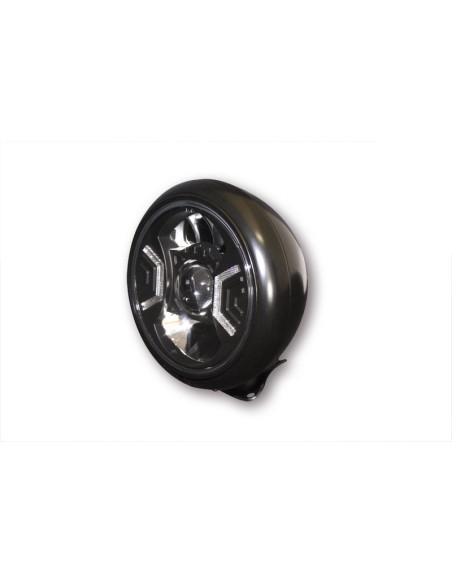

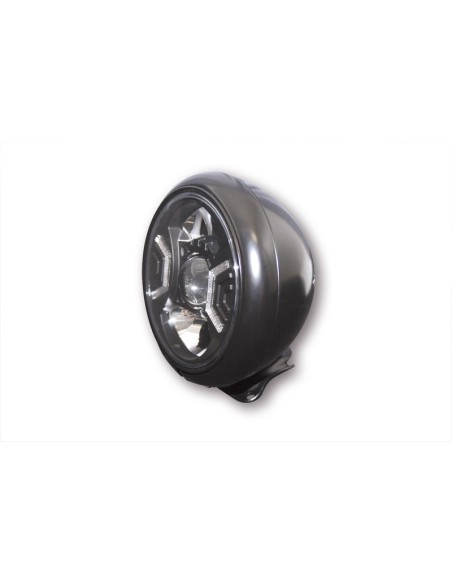

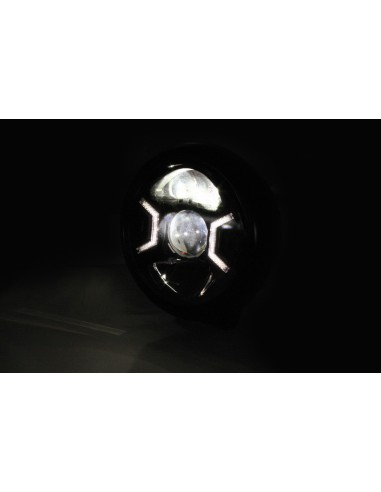

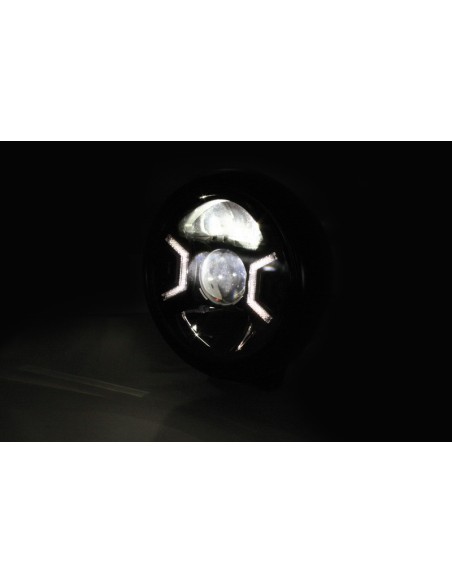

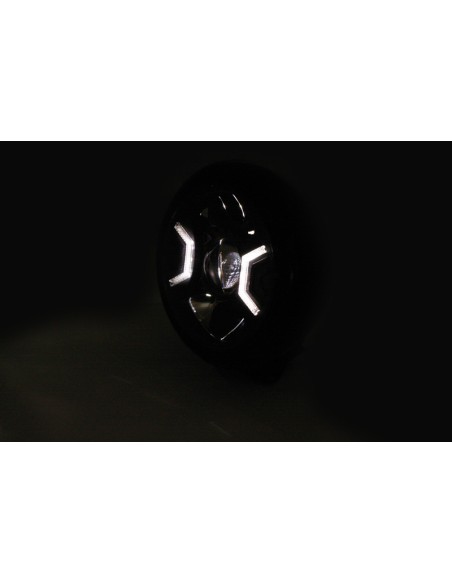

HIGHSIDER HD-Style Type 2 LED Headlight - 7"

HIGHSIDER 7-inch LED floodlight HD-STYLE TYPE 2 for lower mounting Stylish-innovative power LED floodlight in a puristic design with parking light function and a round, clear glass. The oval, satin-matt black or chrome metal case has a black or chrome-plated asymmetric - right-hand traffic only - insert, E-marked. The bright pleasure gives your bike a distinctive style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Dimensions: Housing diameter: 220 mm Headlight insert diameter: 178 mm Depth: 155 mm Distance of the mounting holes on the holder (middle - middle): 65 mm Power consumption at 12,5 Volt DC: Dispersion light: approx. 1.6 ampere (20 watts), 12 volts 1450 lumen Only the upper reflector and the middle ellipsoid insert are illuminated. High beam: approx. 1.6 ampere (20 watts), 12 volts 1582 lumen Only the upper and lower reflectors are illuminated. The middle ellipsoid insert also stops when the headlight flashes. Connections on the reflector in the headlight housing The following 3 cables end in a combination plug: Black cable = Ground (-) Red cable = High beam (+) Blue cable = Low beam (+) Additional 2 cables for parking light: Black = ground (-), Red = parking light (+) White= connection f. Control indicator (can be used optionally) Scope of supply: 1 piece including mating connector (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections: Green cable = ground (-) Blue cable = high beam (+) White cable = low beam (+) Notes: Asymmetrical use, approved for right-hand traffic only.
