HIGHSIDER LED Daytime Running Light - Parking Light Function

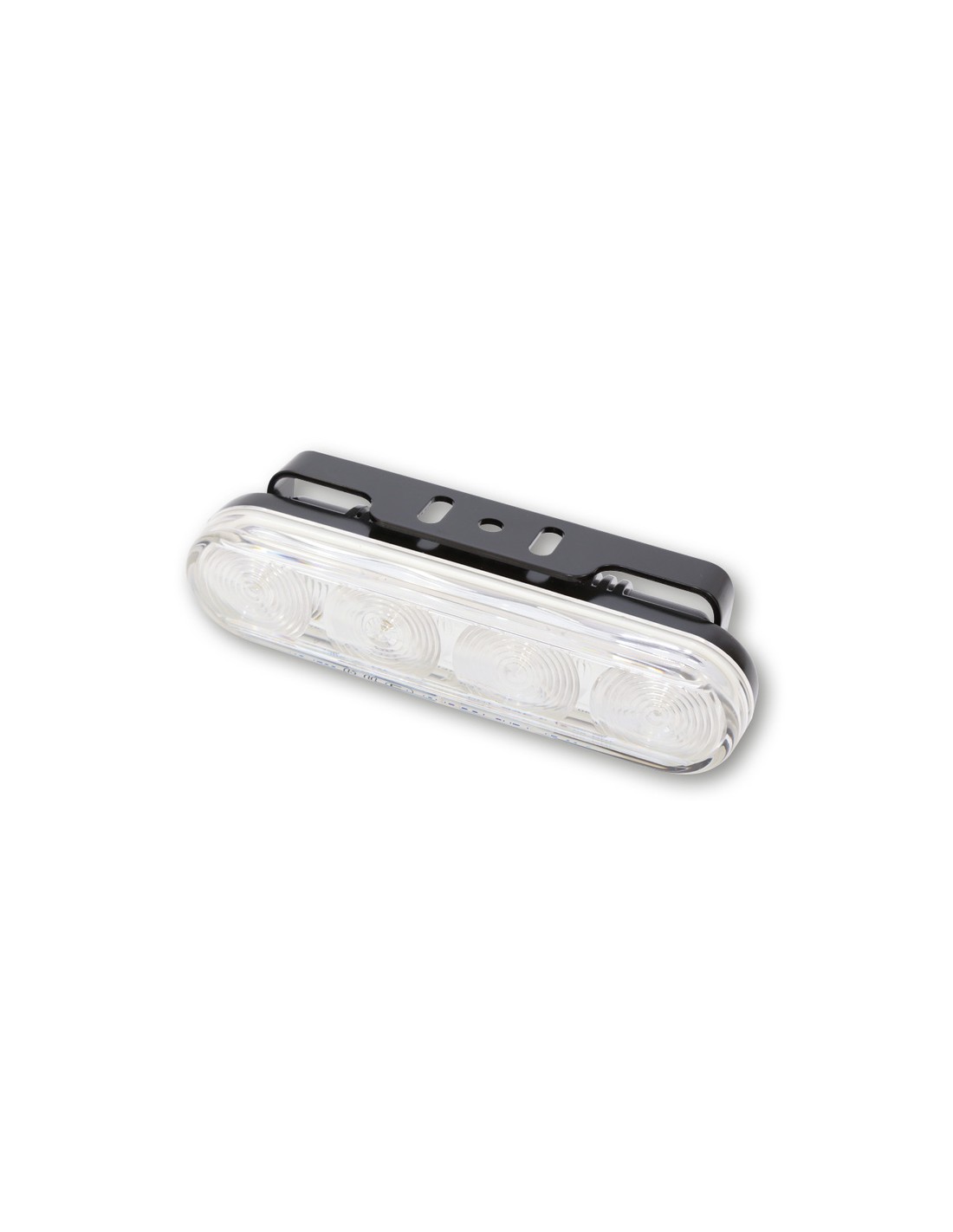

HIGHSIDER LED daytime running light

The LED daytime running light with 4 power LEDs and parking light function ensures that other road users perceive bikers well. Packed in amatt black, rectangular aluminium housing, the daytime running light is manufactured for universal mounting. With this daytime running light, the light switches to the dimmedParking light mode, E-tested.

See and be seen - give your bike personality! The unusual design and the perfect technology of the HIGHSIDER headlight series make you stand out from the crowd.in any case to a
suspicious highlight!

Dimensions:
Width: 150 mm
Height: 38 mm
Depth: 39.5 mm

Technical data:
Current consumption at 12.5 Volt: max. 0.4 Ampere on (corresponds to approx. 5Watt)
Light current at 12 Volt: 250 lumen
br/>Connections:
Black cable: ground (-)
Red cable = plus (+), is connected to switched on plus (ignition).
White cable = is connected toControl cable of the dipped beam connected.

Scope of delivery: 1 piece

Note 1 - with existing light switch:
The operation of the HIGHSIDER LED daytime running light requires a manually switchedDipped headlights via a light switch.
The daytime running light must be connected in such a way that it goes out when the main headlamp is switched on (exception: operation of the headlamp flasher). The rearTail lights must always remain switched on, i.e. set to ignition plus.
Attention: Any other parking lights on the vehicle must be disconnected, as max. 2 parking lights can be connected to thevehicle may be used.

Note 2 - without an existing light switch:
The daytime running light can also be used on vehicles without a light switch The following components, for example, are used for this purposerequired:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
