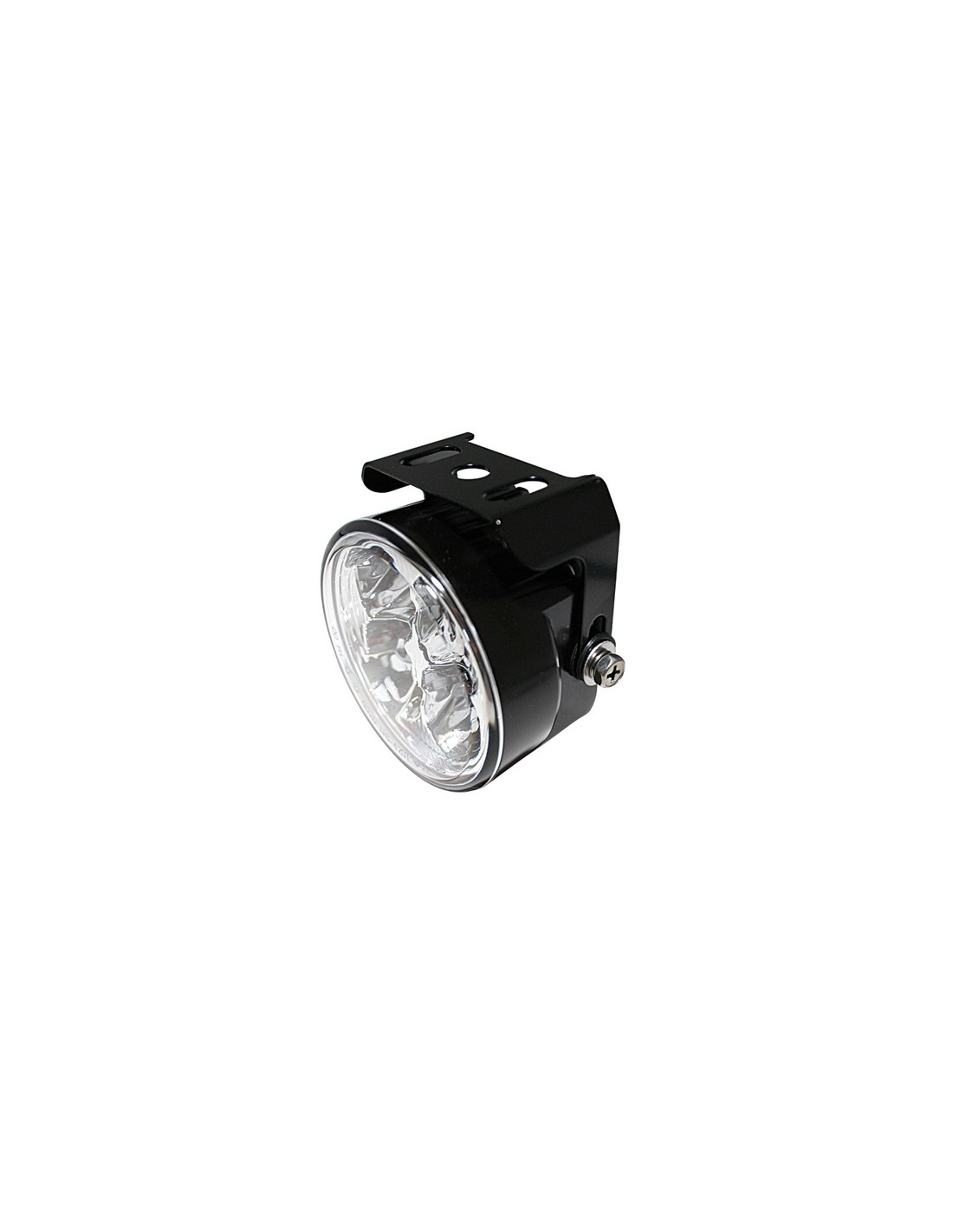

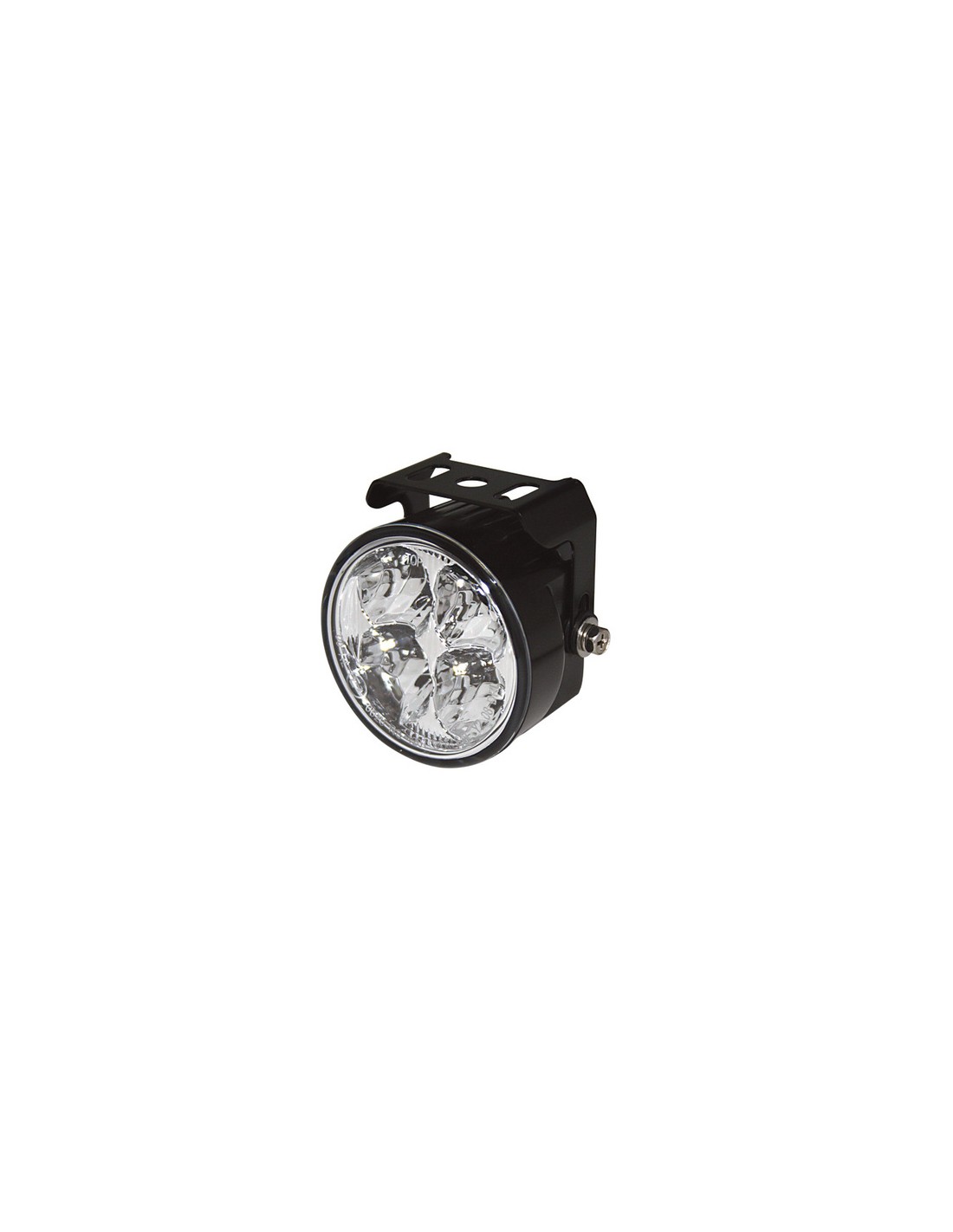

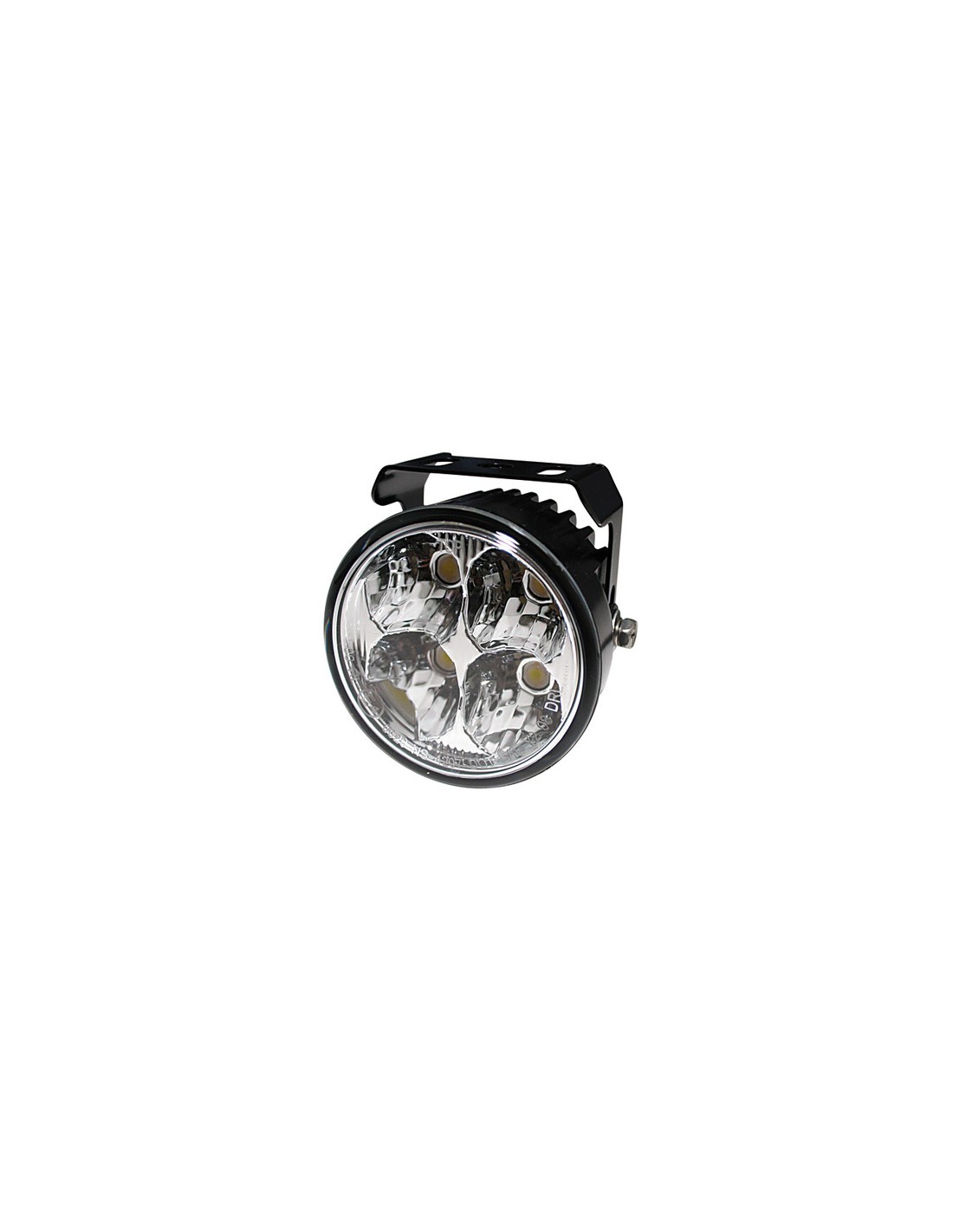

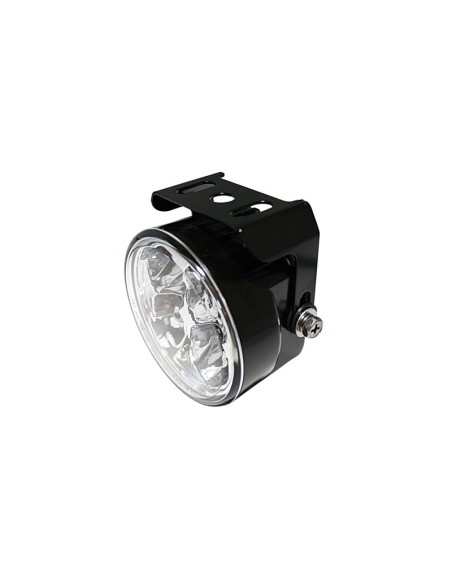

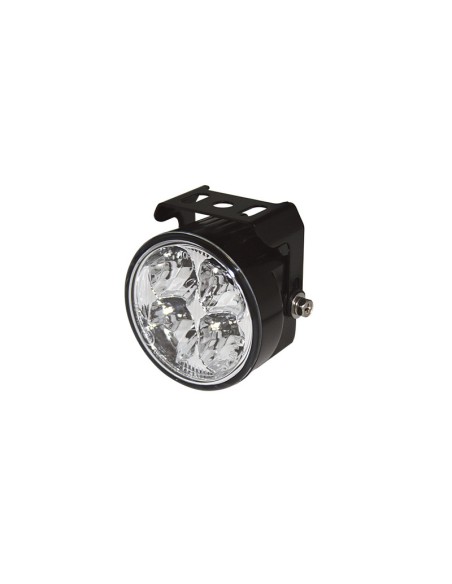

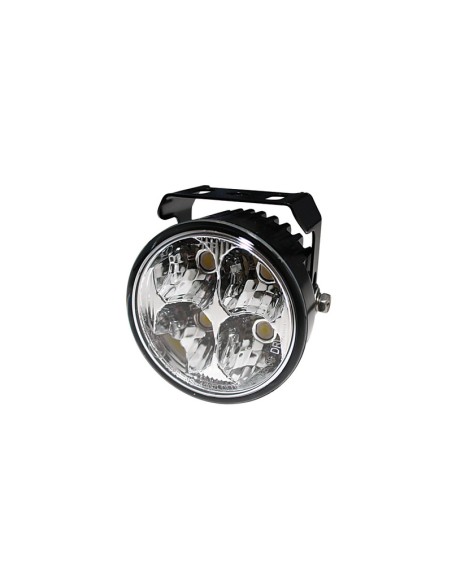

HIGHSIDER LED Daytime Running Light - Round

HIGHSIDER LED daytime running light, E-approved
The LED daytime running light with 4 LEDs is built into a round, black-painted aluminium housing. The powerful LEDs significantly increase the perception of motorcyclists by other road users.

See and be seen – give your bike personality! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely turn you into a sensational highlight!

Dimensions:
Diameter: 71.5 mm
Depth: 47.5 mm

Technical specifications:
Current consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts)
Luminous flux at 12 volts: 150 lumens

Connections:
Black wire: ground (-)
Red wire = positive (+), connects to switched positive (ignition).
White cable = control line to parking light

Scope of supply: 1 piece

NOTE 1 – WITH existing light switch:
Prerequisite for the operation of the daytime running light (TFL) is a manually switched low beam (light switch), otherwise the function of the TFL would be canceled.
According to road traffic regulations, the TFL must be connected so that it goes out when the main headlight is switched on.
(Exception: operating the headlight flasher). The rear tail light must always remain switched on, i.e. set to ignition plus.

NOTE 2 – WITHOUT existing light switch:
The daytime running light can also be used on vehicles without a light switch. For this purpose, e. g. B. The following components are required:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1: Art. No. 208-108 (switches between low beam and daytime running light)
