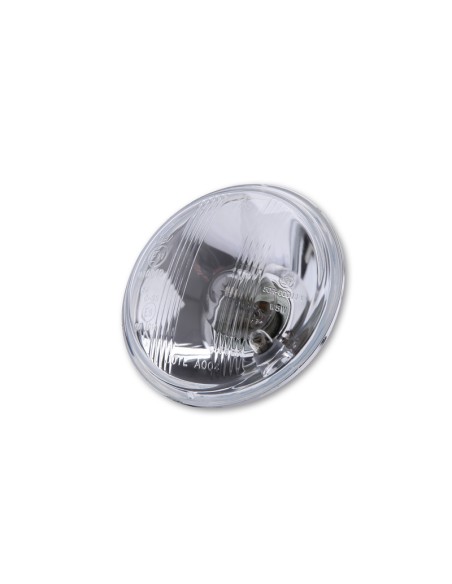

E-approved headlight insert from SHIN YO
The insert approved as a main headlight has an embossed glass and comes with a Bilux bulb 35/35W and parking light.

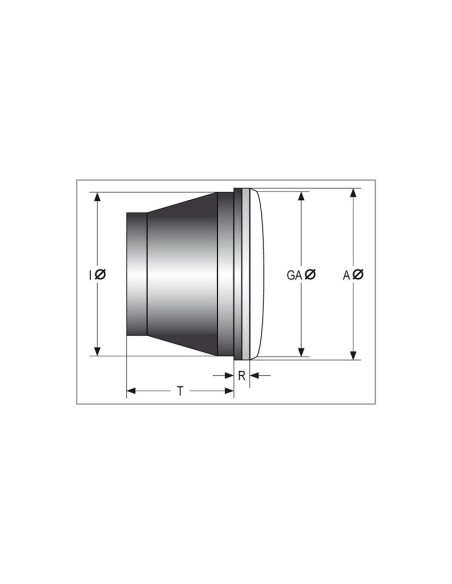

Dimensions:
A = 114 mm (4.5 inches)
GA = 102 mm
I = 100 mm
R = 8.5 mm
T = 65 mm + 10mm for cable
Connections:
green - ground
blue - high beam
white - low beam
brown - parking light.
