HIGHSIDER Jackson LED Main Headlight Insert - 5 3/4"

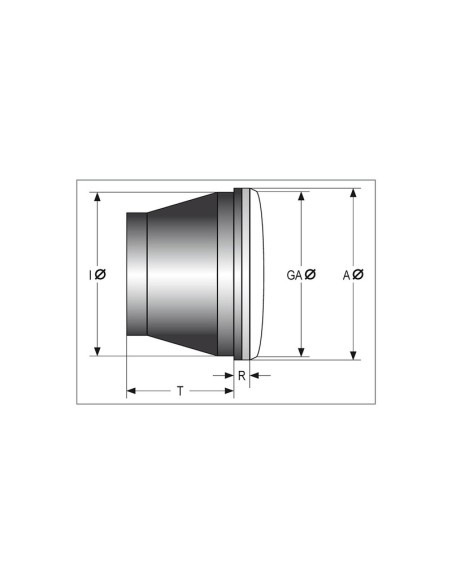

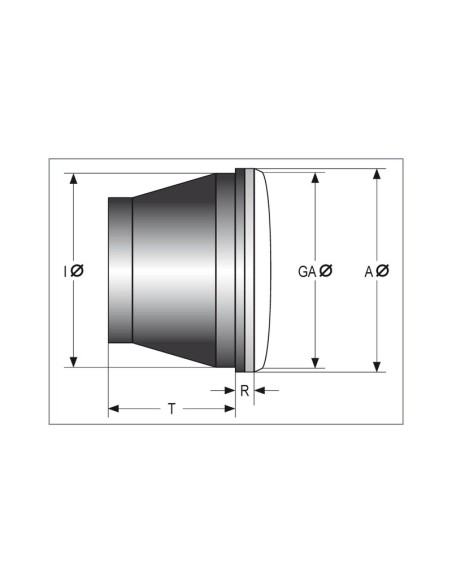

HIGHSIDER LED Main Headlamp Insert JACKSON, 5 3/4 inch This round, chrome-plated reflector features high beam, low beam, parking light and clear glass. The parking light function is shown in the middle of the insert as a light strip (Light Guide System). The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-tested. Attracting attention, give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight! Dimensions Diameter A = 148 mm Diameter GA = 134 mm Diameter I = 128 mm T = 60 mm R = 11 mm Technical Data Voltage: 12 V Triple Plug Connectors Black = Ground (-) Blue = Low Beam (+) Red = High Beam (+) Separate Cable: Red = Parking light/parking light (+) Black = Mass (-) Scope of supply: 1 piece Optionally available: Complete spotlight: 5 3/4 inch LED headlight JACKSON, black and chrome: Art.-No. 223-028 and 223-029 5 3/4 inch headlight #223-014, 223-015 plug for H4 bulbs, with 210 mm cable #396-042 Fits not into BATES STYLE headlight, 5 3/4 inch (#222-018, -019)
