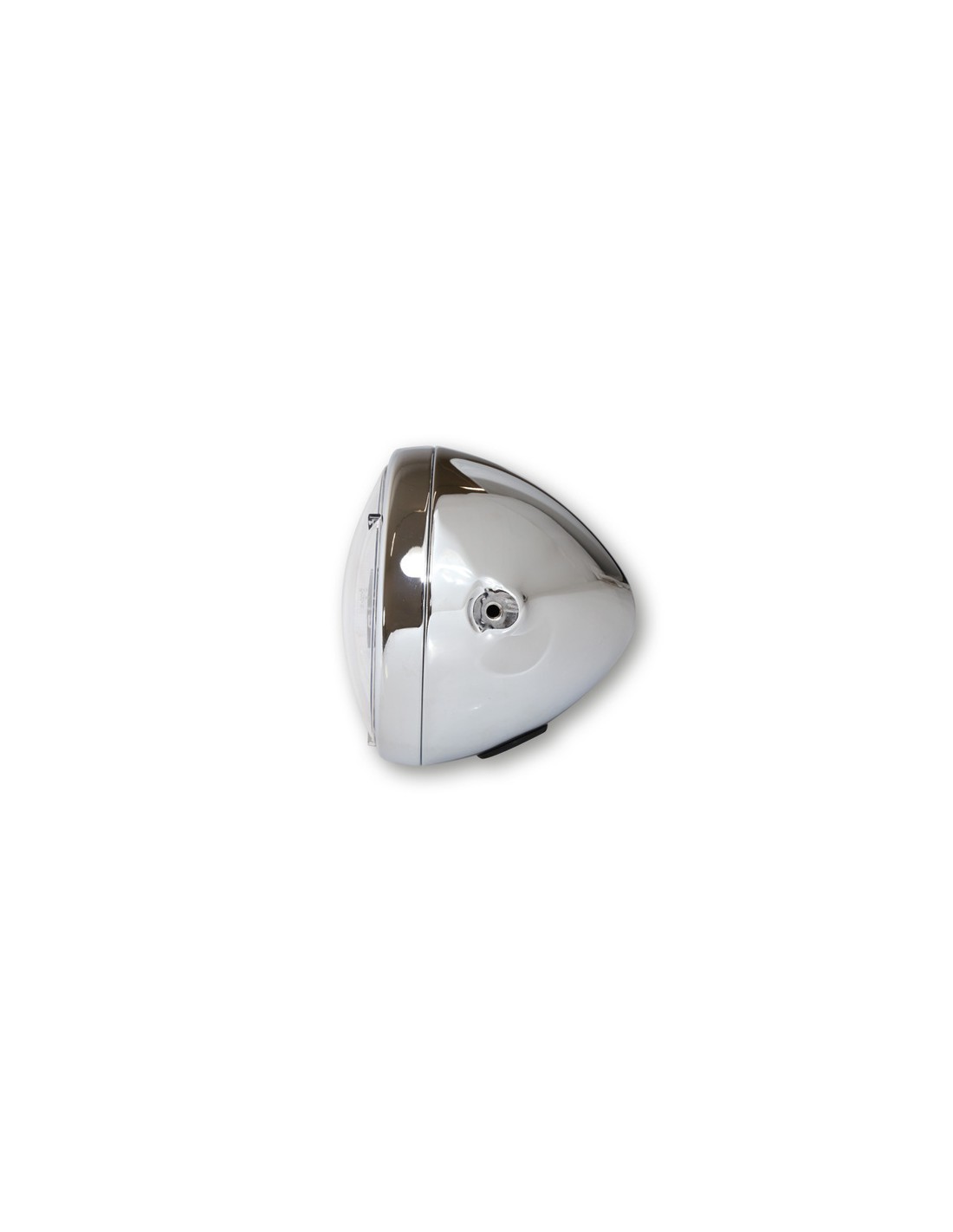

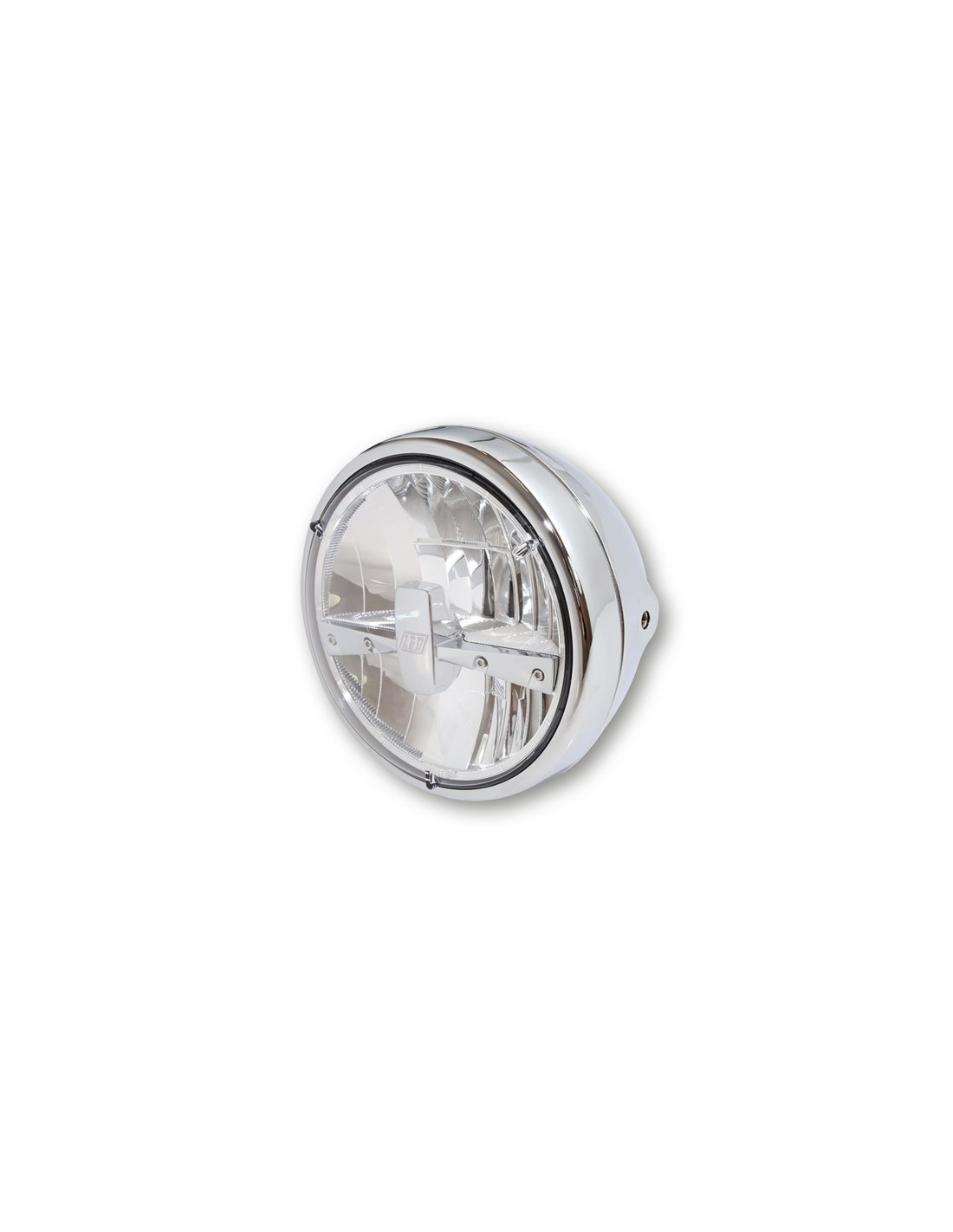

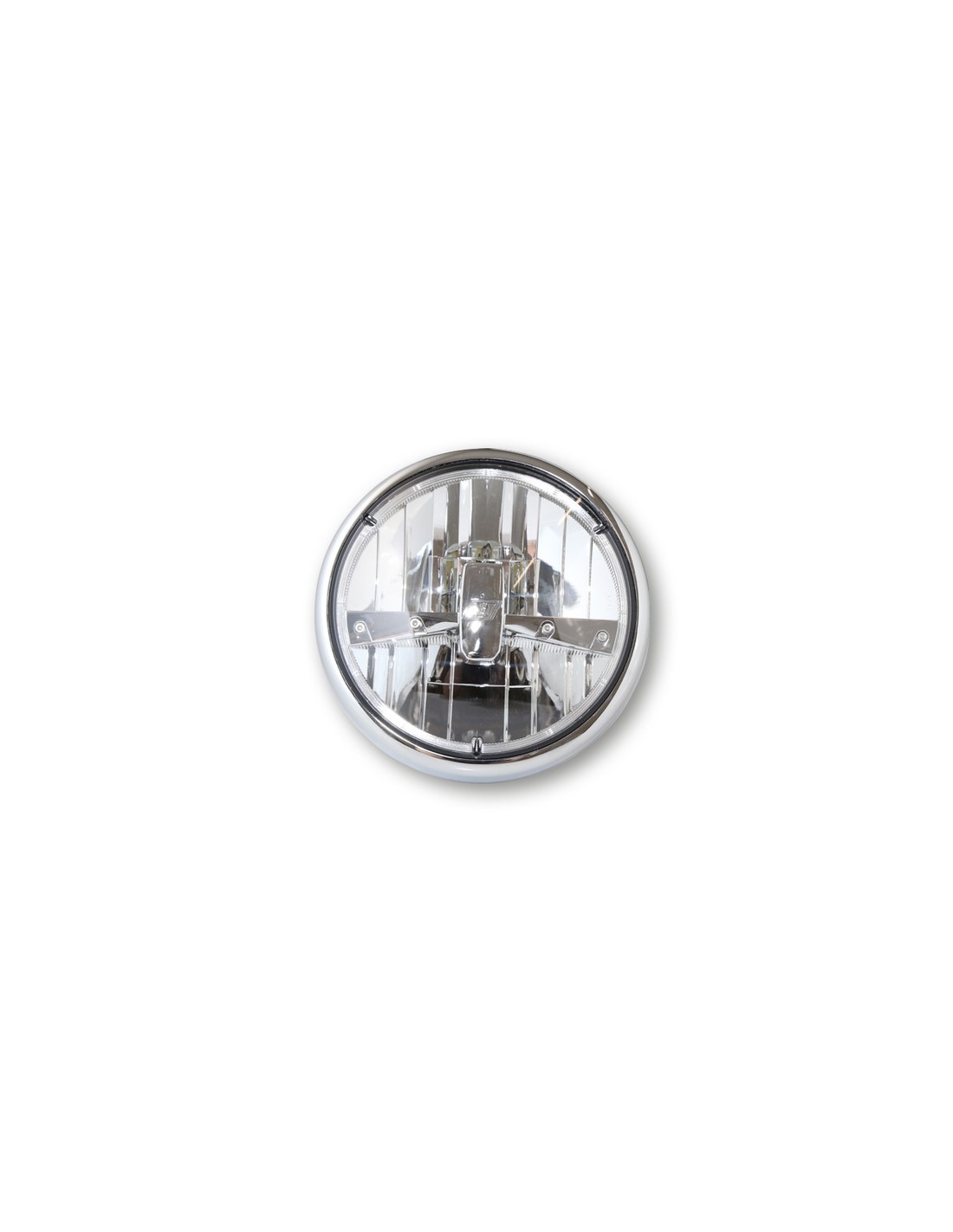

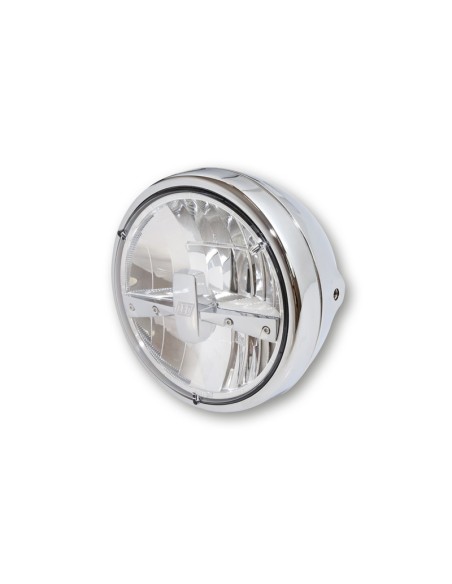

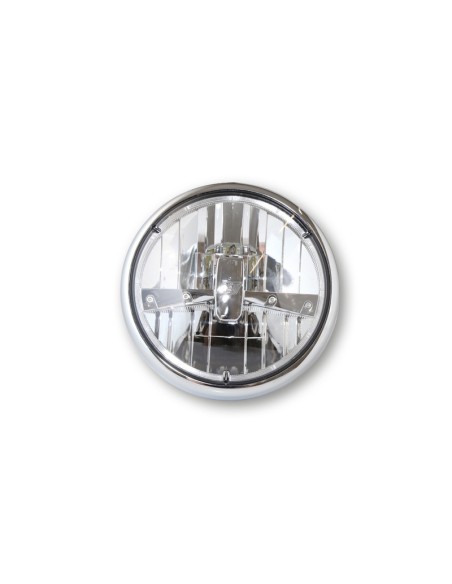

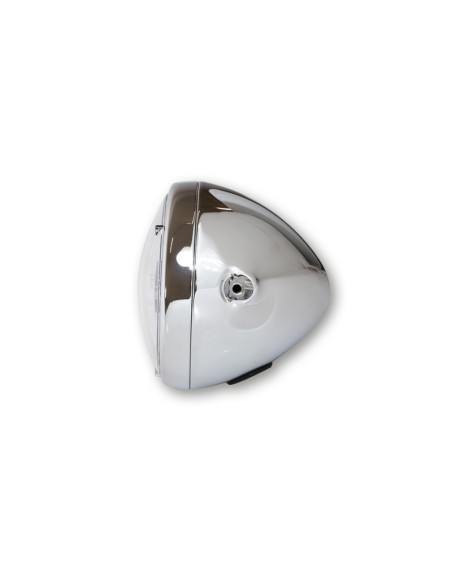

HIGHSIDER 7 inch LED spotlight RENO TYP 3 for side mounting n
innovative power LED spotlight with sidelight function and clear glass. The oval metal case features a chrome-plated, asymmetrical - right-hand traffic only - reflector, E-approved.
Our highlights give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!
Maße headlights:
Housing diameter: 200 mm
Headlight insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (center - center): 170 mm
Distance between mounting hole (center) and housing end: approx. 90 mm
Fixing: lateral with M8 threaded bolts
Connections:
3-pin type A female connector 210 mm cable length (included)
Green cable = ground (-)
Blue cable = high beam (+)
White cable = low beam (+)
At the reflector in the headlight housing:
Black cable = ground (-)
Red cable = low beam (+), power consumption: at 12 volts 18 watts, approx. 1132 lumens.
