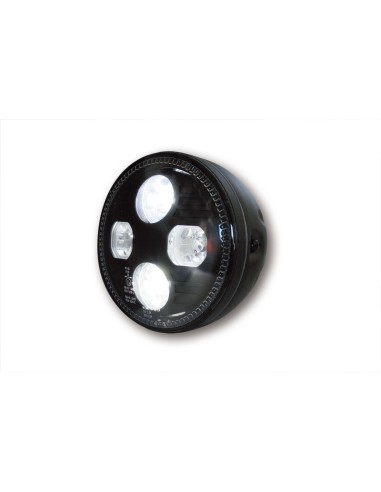

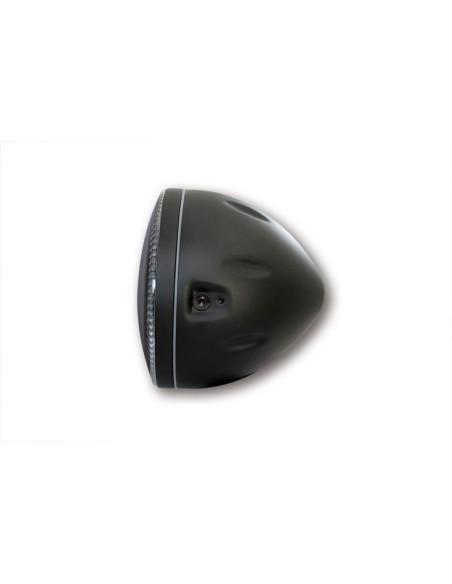

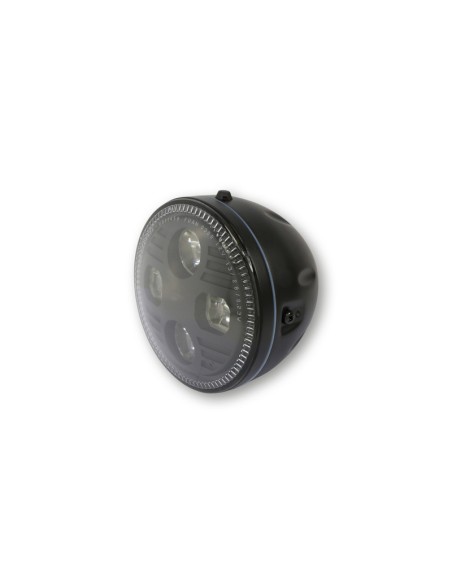

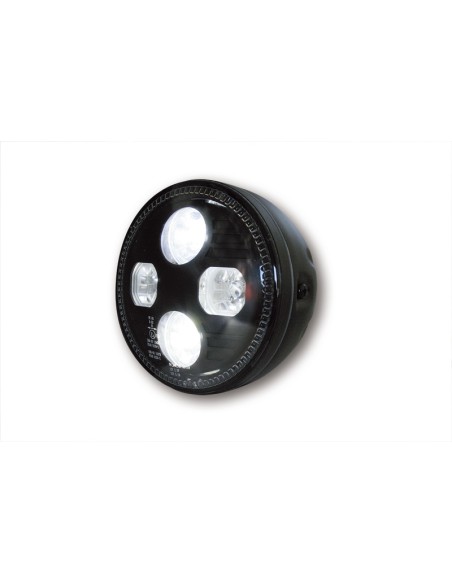

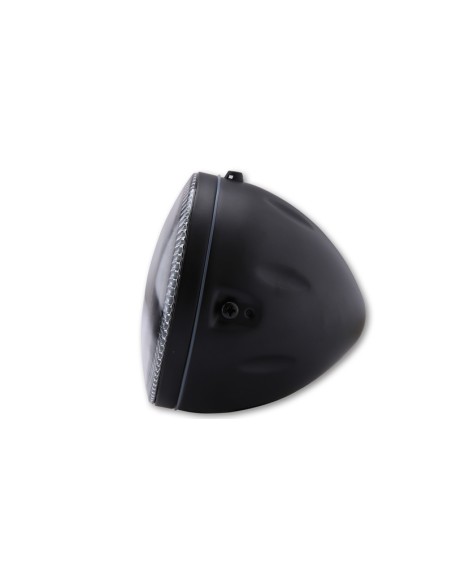

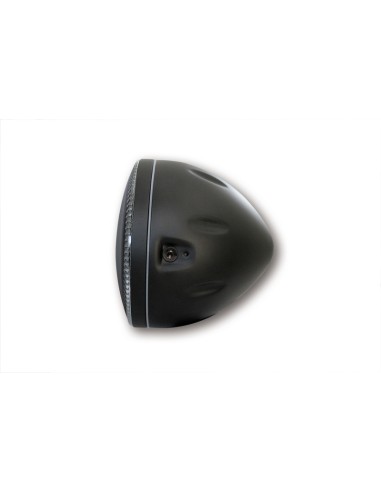

HIGHSIDER 5 3/4" LED Headlight Atlanta

HIGHSIDER 5 3/4 inch LED headlight ATLANTA with side light for side mounting The innovation for your safety - the model ATLANTA is a headlight equipped with 4 power LEDs, which is available in the following variants: In a high quality black metal housing with black insert or in a high quality chrome plated metal housing with chrome plated insert. The LED technology for low beam and high beam produces a symmetrical, daylight-like light for optimal visibility, E-approved. The bright joy: Give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make you an eye-catching highlight in any case. Headlight dimensions: Diameter: 145 mm, depth: 95 mm (from fixing screw to rear housing), depth: 135 mm, dimensions: control box: 74 mm, height: 74 mm, width: 42 mm, depth: 21 mm, weights: approx. 1200 g Control part approx. 210 g Technical data Power consumption low beam at 12.5 volts: 1.1 amperes (13.75 watts) Power consumption high beam at 12.5 volts: 2.3 amperes (28.75 watts) Luminous flux at 12 volts: high and low beams of 1200 lumens each connections: 9 -16 Volt DC Black = Ground White cable = Low beam Blue cable = High beam Brown cable = Parking light Fixing: Lateral with fixing screws M6 Supplied with: 1 piece Note: The control box must be connected!
