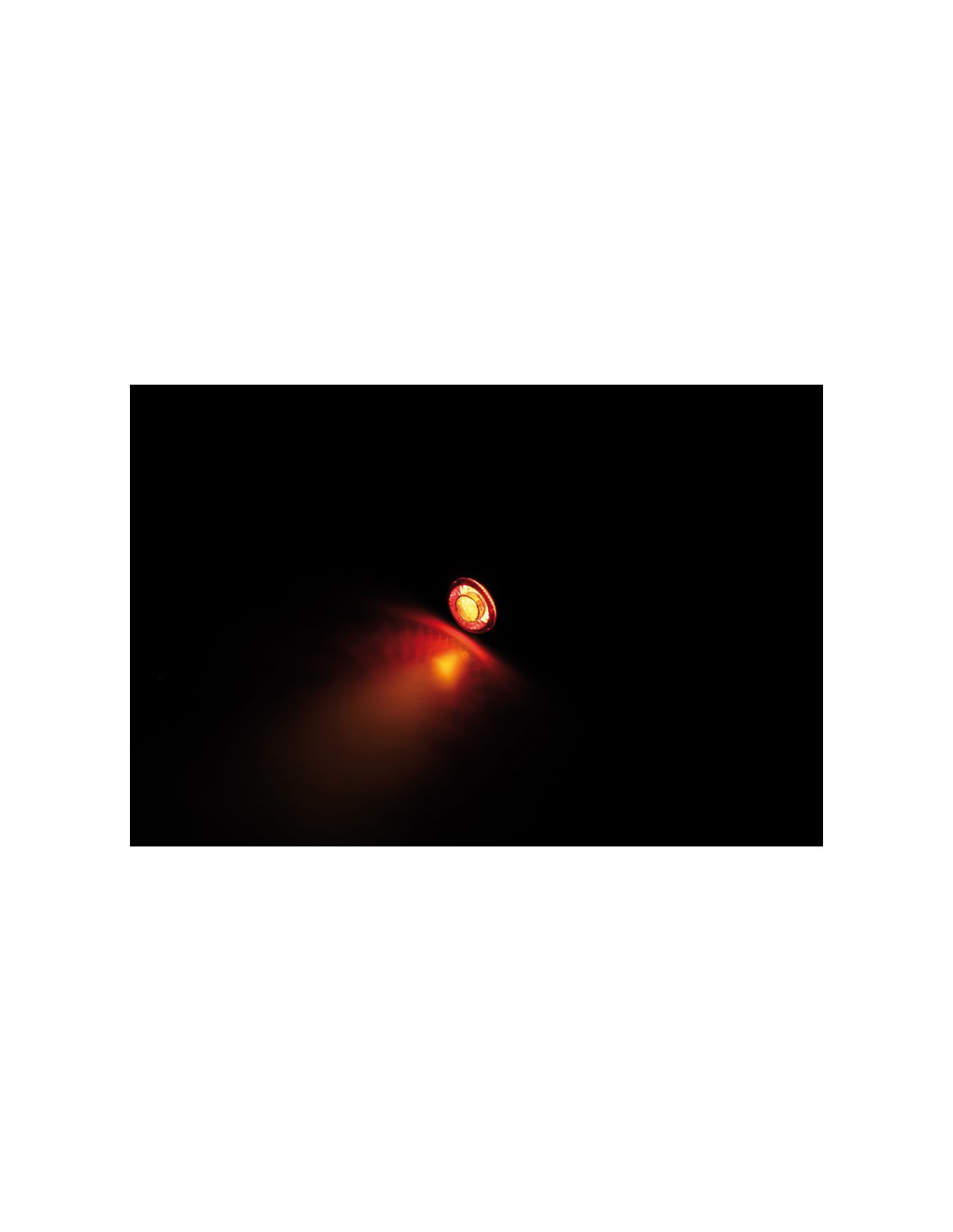

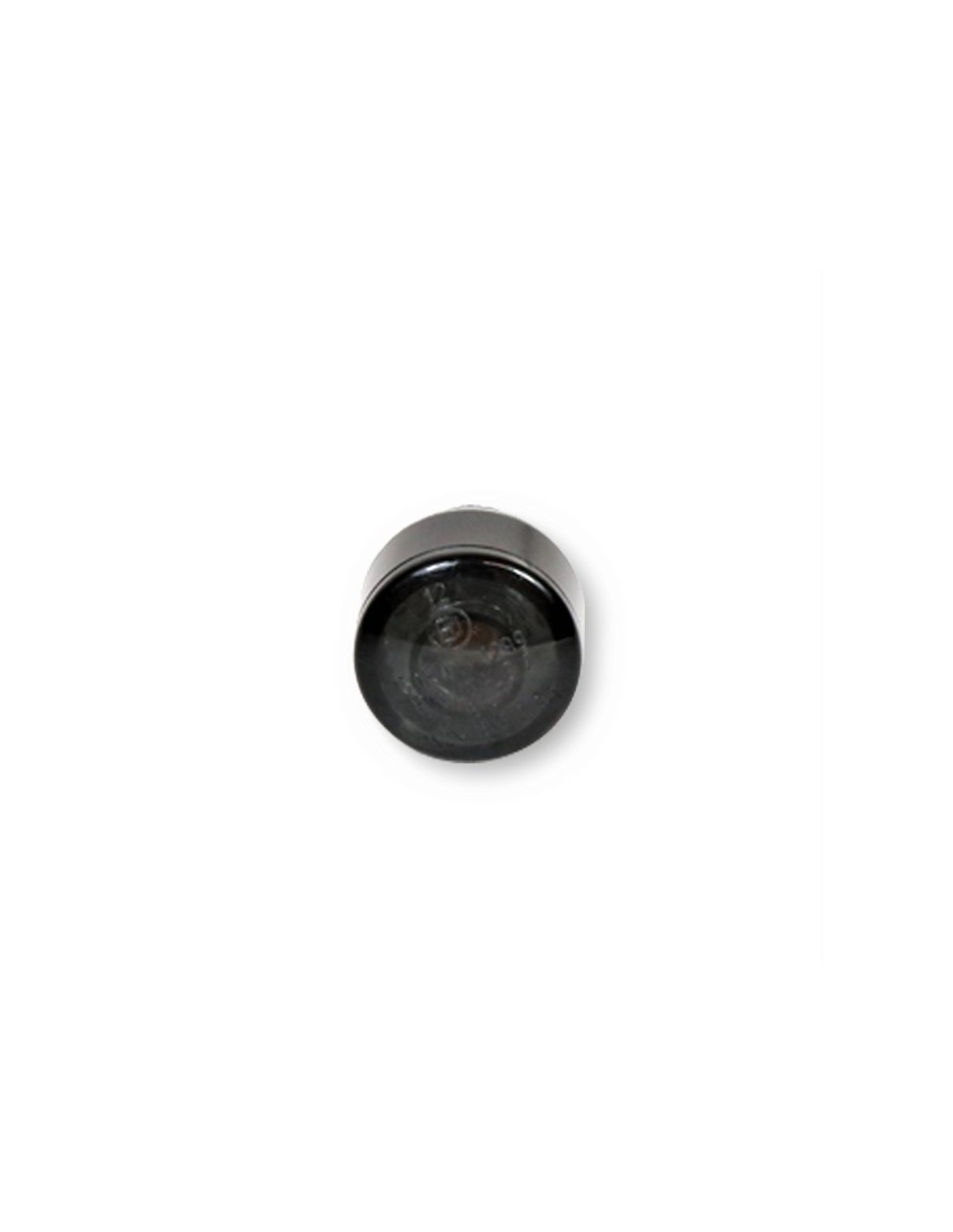

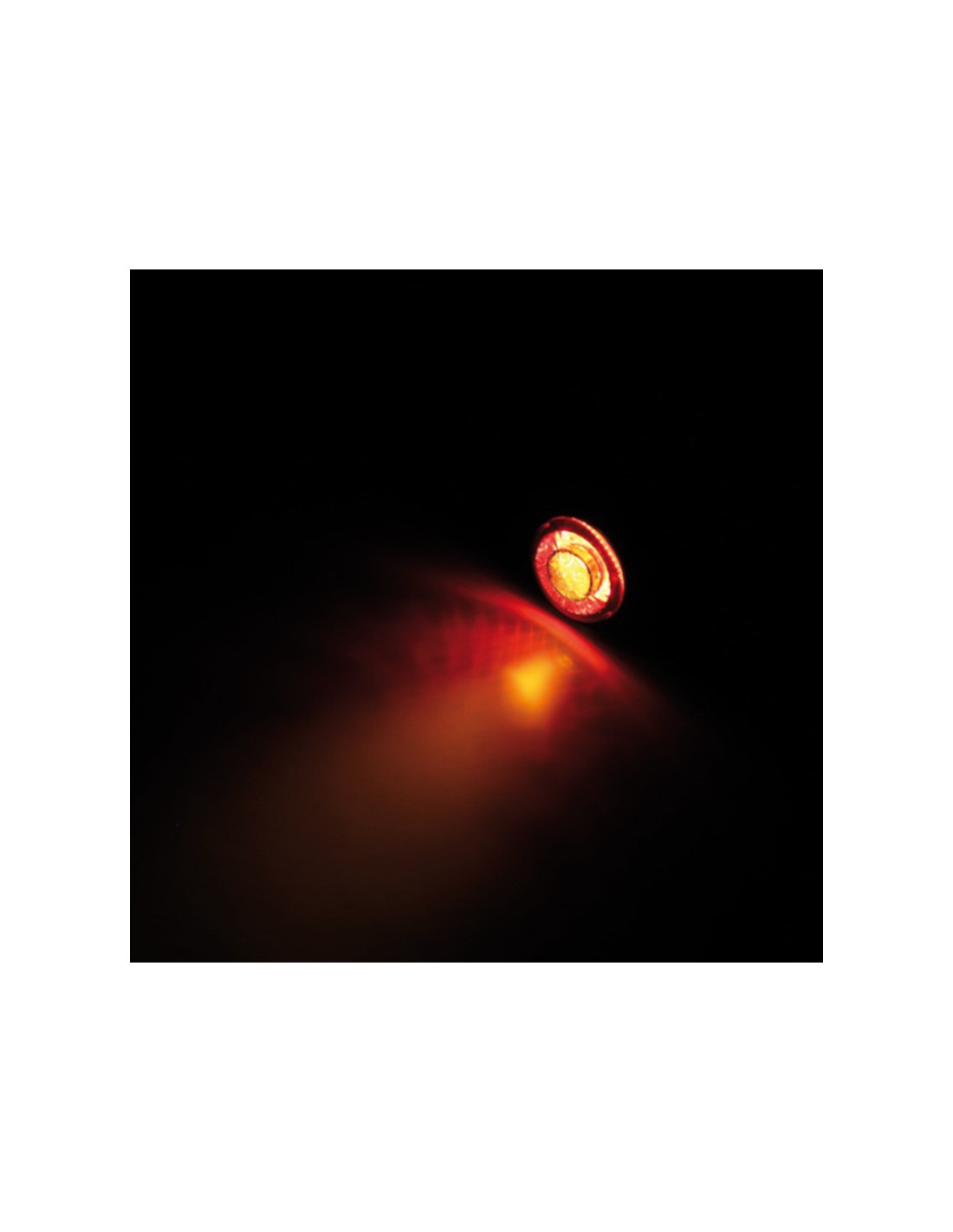

HIGHSIDER Apollo LED Rear Light - Brake Light/Indicator

HIGHSIDER APOLLO LED tail light, brake light, turn signal module

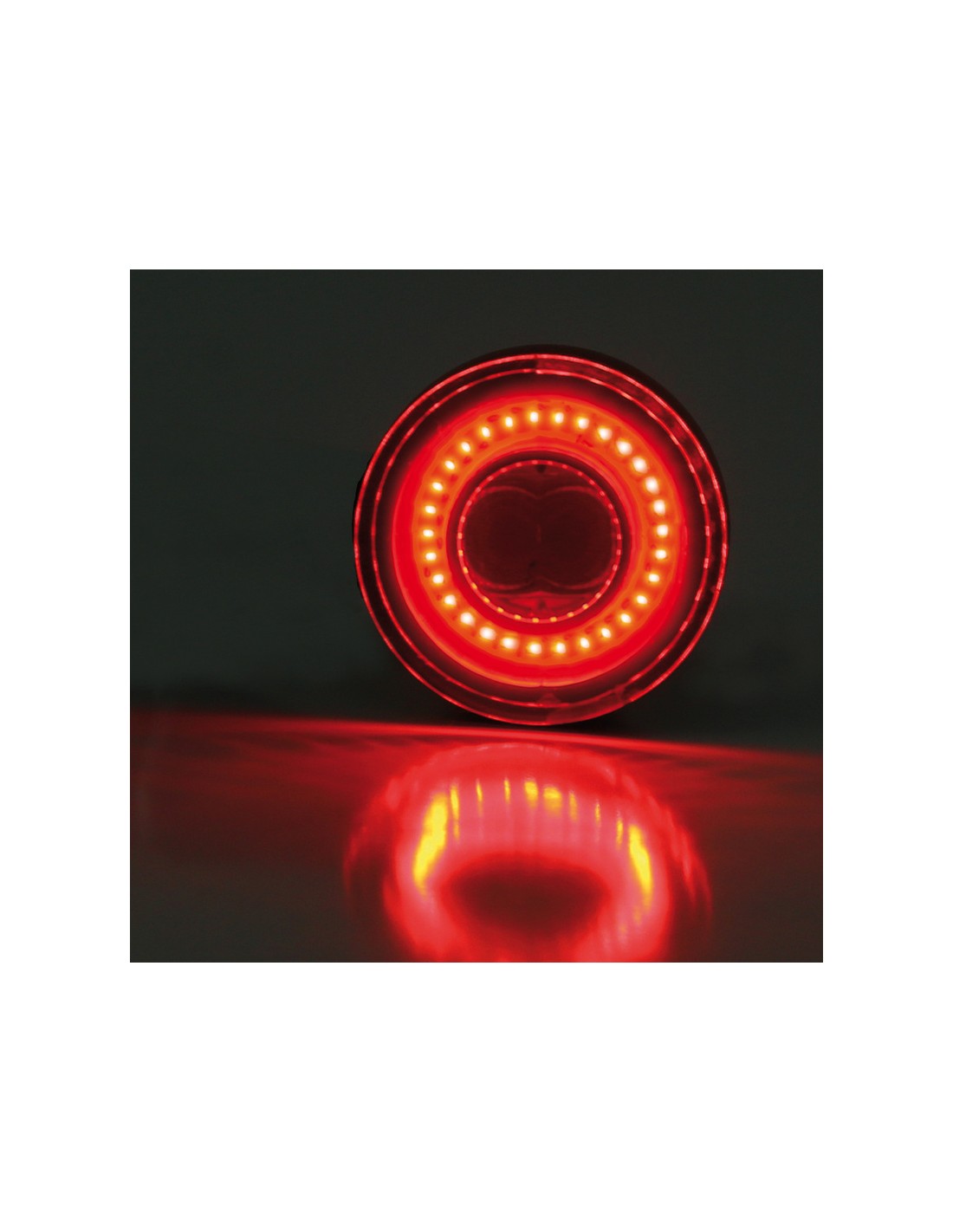

LED tail light, brake light, turn signal module suitable for recessed or surface mounting, black aluminium ring with tinted glass, E-tested. There are two very bright SMDs in the center. The outer ring consists of COBs (Chip On Board). With this technique, the semiconductor (without housing) is glued directly onto a printed circuit board. This module is supplied with a black anodised aluminium ring that fits over the base body.

The best comes at the end the taillight and taillight/indicator series from HIGHSIDER give you the safety you need and the look you want whether cruiser, athlete or speedster.

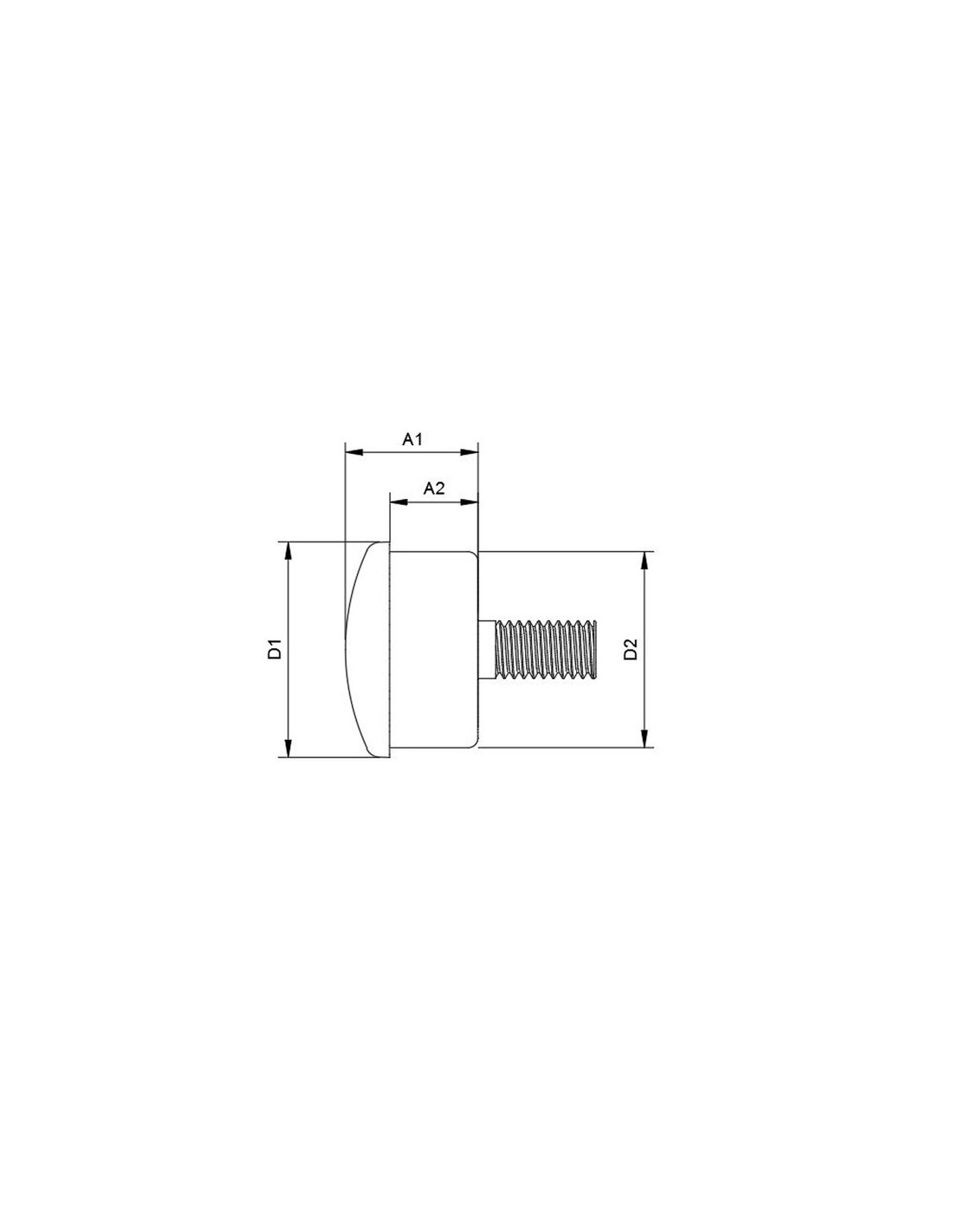

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm

Threaded bolts: M8, length 12 mm

Connections:
Black cable = mass (-)
Yellow cable = taillight (+)
Red cable = stoplight (+)
Blue = turn signal (+)

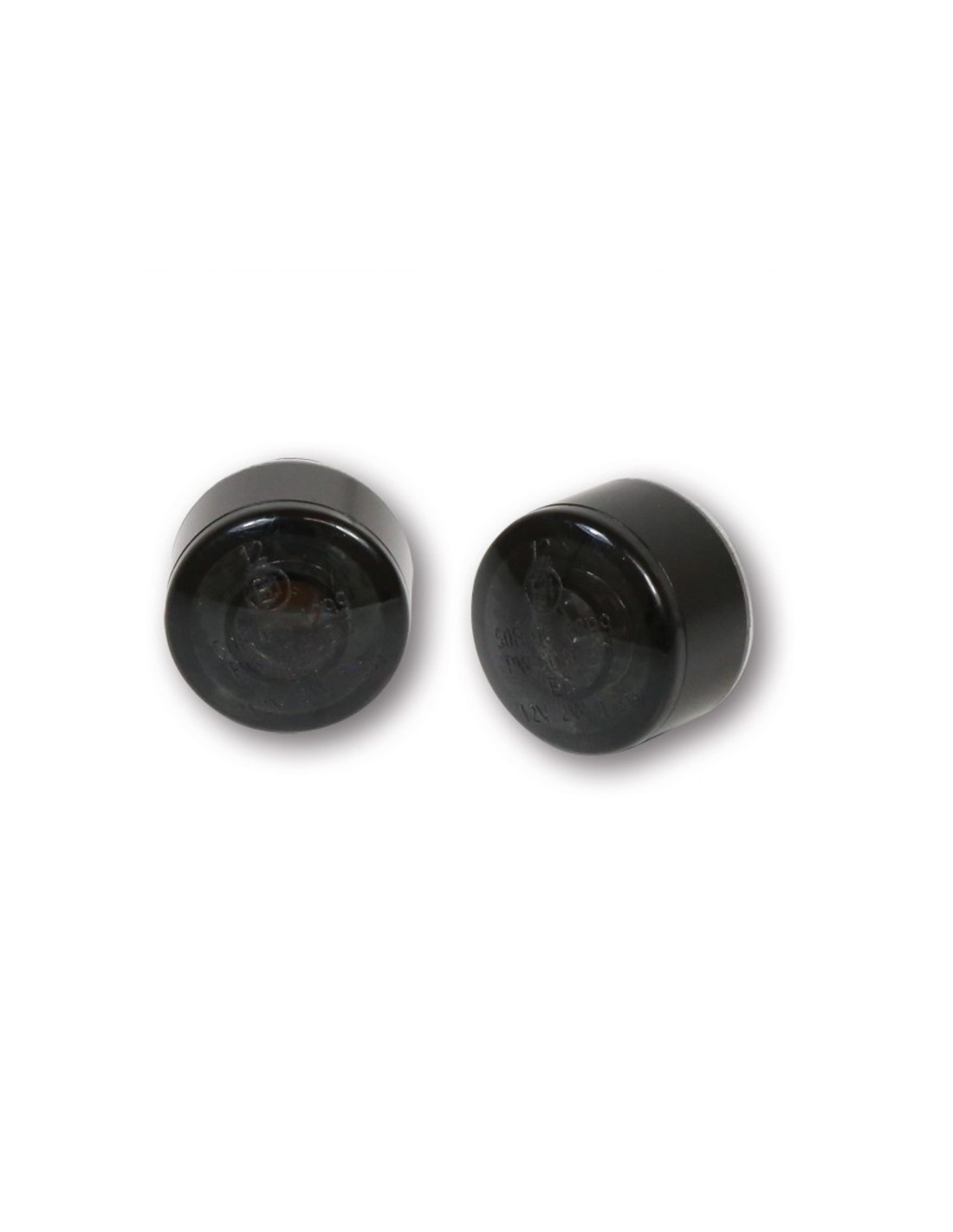

Scope of supply: 1 Pair

Note:
The unit can be installed flat without an aluminium ring, so that only the lens is visible. A 20 mm wide hole must be drilled for this purpose. Alternatively, the unit can be mounted with the aluminium ring on e.g. a mounting plate on the vehicle.
