RAM MOUNTS U-Bolt Rail Base Ø 12.7mm to 31.8mm - B Size Ball

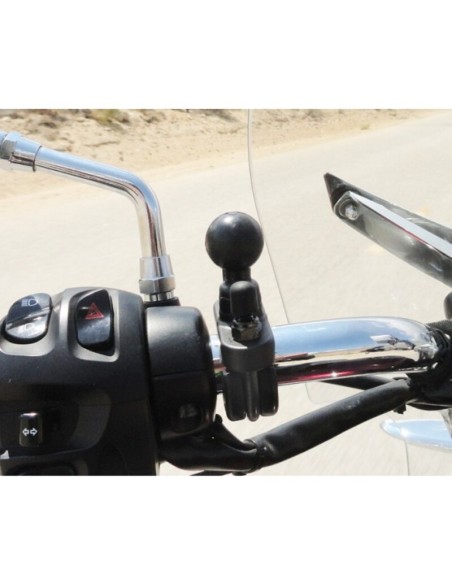

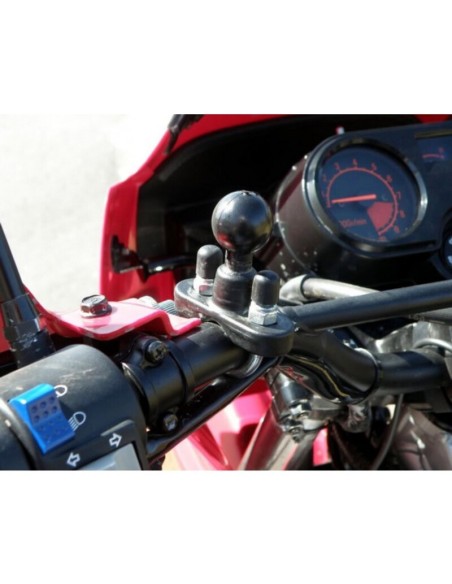

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from 12,7mm to 31,75mm in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5" (12,7mm)

FEATURES

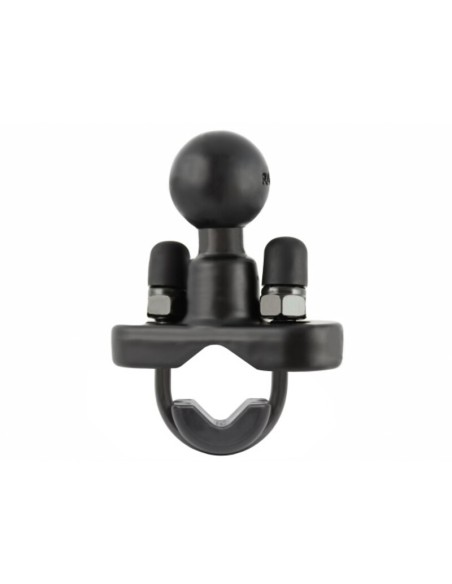

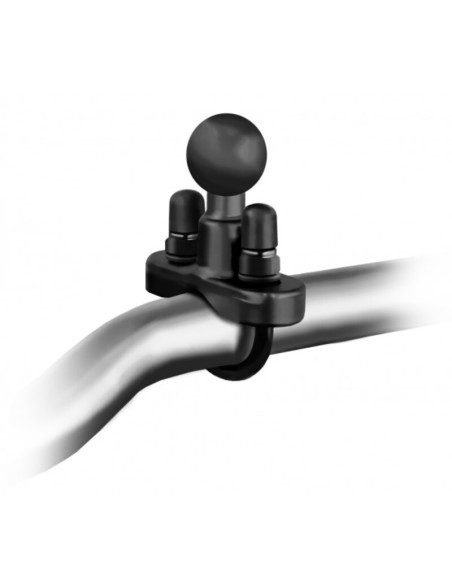

• Zinc-coated metal U-bolt base with 2.54cm (1") rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
• Compatible with any B size RAM Mounts component; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

 HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails (12.7mm - 25.4mm)
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (25.4mm - 38.1mm)
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

12,7mm - 31,75mm diameter

BALL/SOCKET SIZE

B Size Ball :2.54 cm (1") in diameter (generally used to support a load of 0-2 kg)

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag
