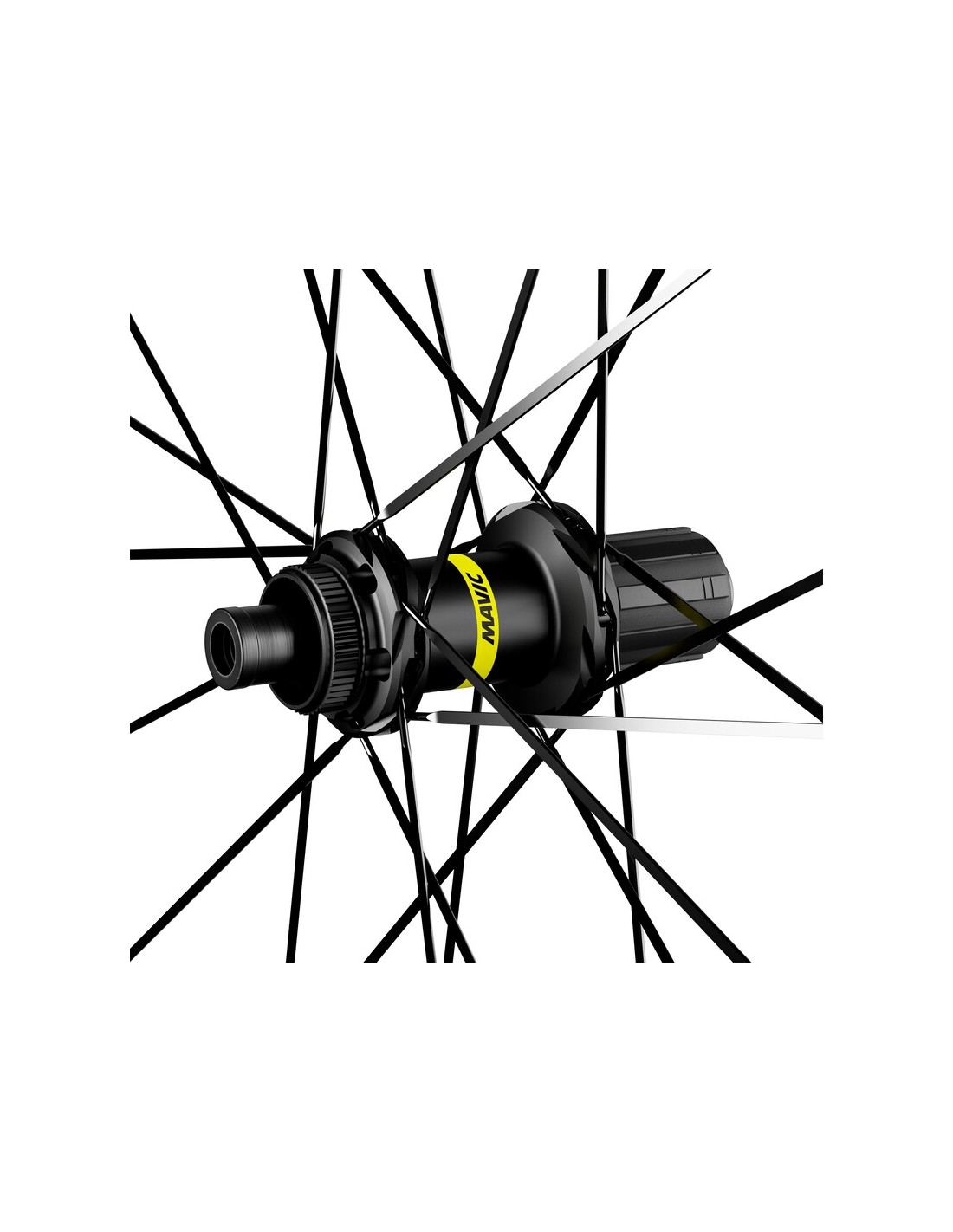

MAVIC Rear Wheel Allroad S UST Disc CL

Key Benefits

Ride smoother and faster on rough roads, gravel and dirt

22mm wide UST rims integrated for a smooth ride with a wide range of tubeless tires from 28mm-64mm UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads No tubes means less friction, better efficiency and grip, and pinch-flat protection

Lightweight and durable

Lightweight, flat spokes and ID360 freewheel technology for reliable lightweight performance Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability Fore drilling doesn't require the use of rim tape - 30g saved per wheel

Laterally stiff and vertically compliant for a dynamic ride quality

Fore technology keeps the rim upper bridge solid to make the rim stiffer 17mm axle and new hub design ID360 freewheel technology is 12mm compatible, convertible to quick release (15mm axle option through axle replacement)

Compatible with Center Lock Brake Disc

Weight:

1765 grams (Pair)
830 grams (Front)
935 grams (Rear)

Specifications

Rims

• Material: Maxtal
• Height: 22 mm
• Disc brake specific profile
• Tire: UST Tubeless and tubetype
• Internal width: 22 mm
• ETRTO size: 622x22TSS ROAD
• Hookless profile
• Fore
• UST
• SUP

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Front: Quick release, 12x100 and 15x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Infinity Hub
• Instant Drive 360
• QRM Auto

Versions

• Disc standard: Center Lock (R) only
• Freewheel: Shimano/Sram or XD-Road

Delivered with

• UST valve and accessories
• User guide

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
• Front axle: 12mm thru axle, easily convertible to quick release with included adapters.
• Convertible to 15mm with complete axle replacement
• Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters

Intended use

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
• Recommended tyre sizes: 25 to 32 mm
• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
