HIGHSIDER Handlebar Accessories Adapter - Various BMW Models (pair)

HIGHSIDER mounting kit for various BMW motorcycles

This special mounting kit makes it possible to mount the popular HIGHSIDER handlebar end weights, handlebar end mirrors or lever protectors on the original handlebars of BMW motorcycles.

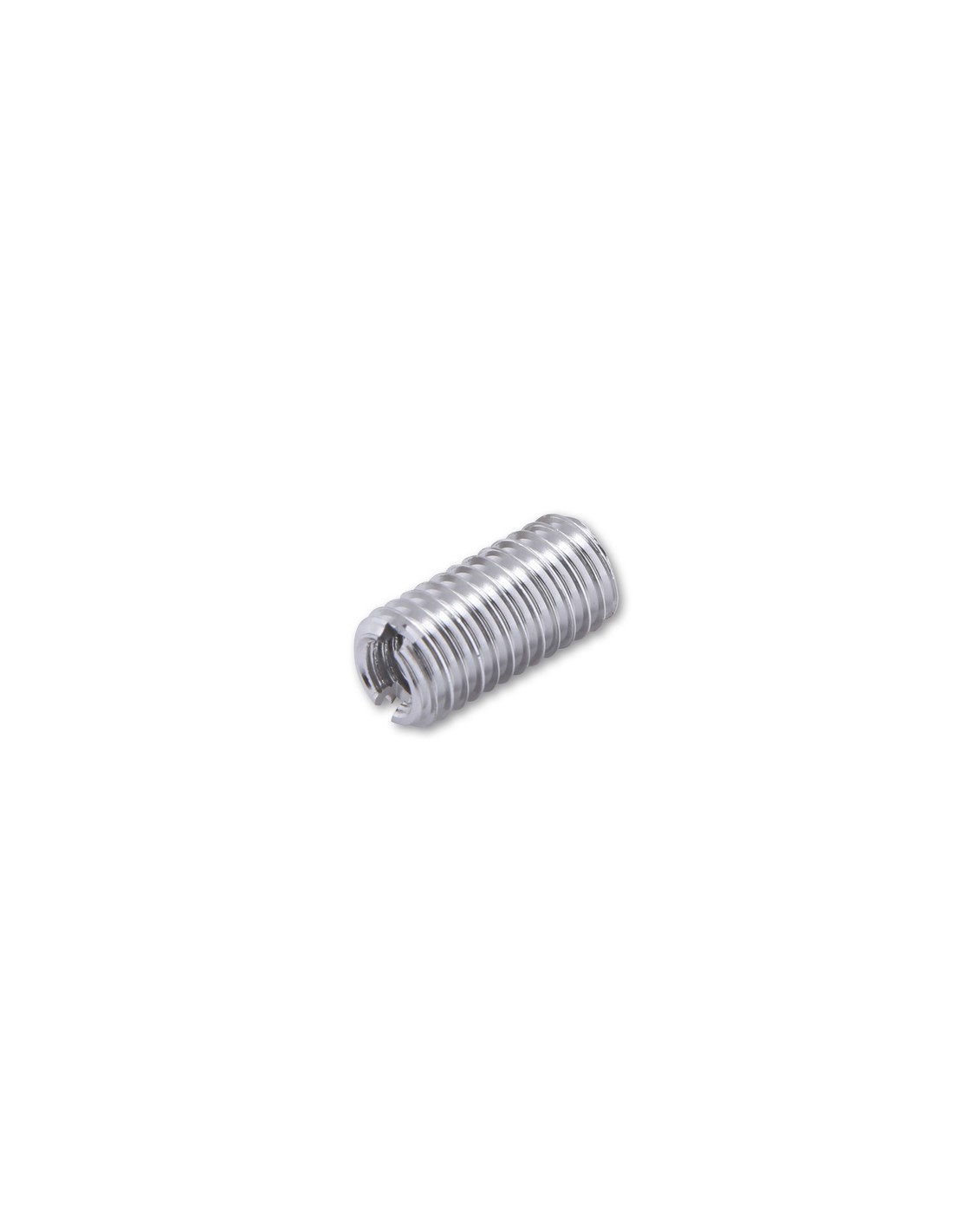

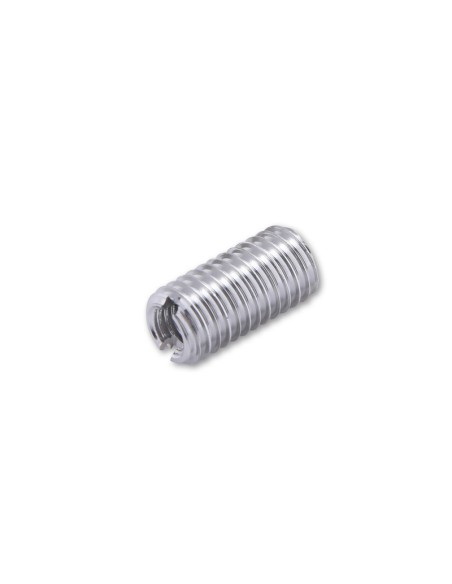

With a suitable slotted screwdriver the M10 threaded sleeves with M6 internal thread are screwed into the thread existing in the handlebar.
Now the HIGHSIDER handlebar accessories can be mounted on the BMW handlebar with M6 central screw.
In order to create a sufficient distance between handle and attachment, the washers included in the set can be used if necessary.

Tailor-made for your bike the extensive range of accessories from HIGHSIDER is perfectly tailored to your bike. With a maximum of quality and functionality you can easily design your bike according to your wishes.

Dimensions:
Outside: M10 x 1,5
Inside: M6 x 1

Washer:
Outside diameter: 18 mm
Inside diameter: 6.5 mm
Thickness: 1.6 mm

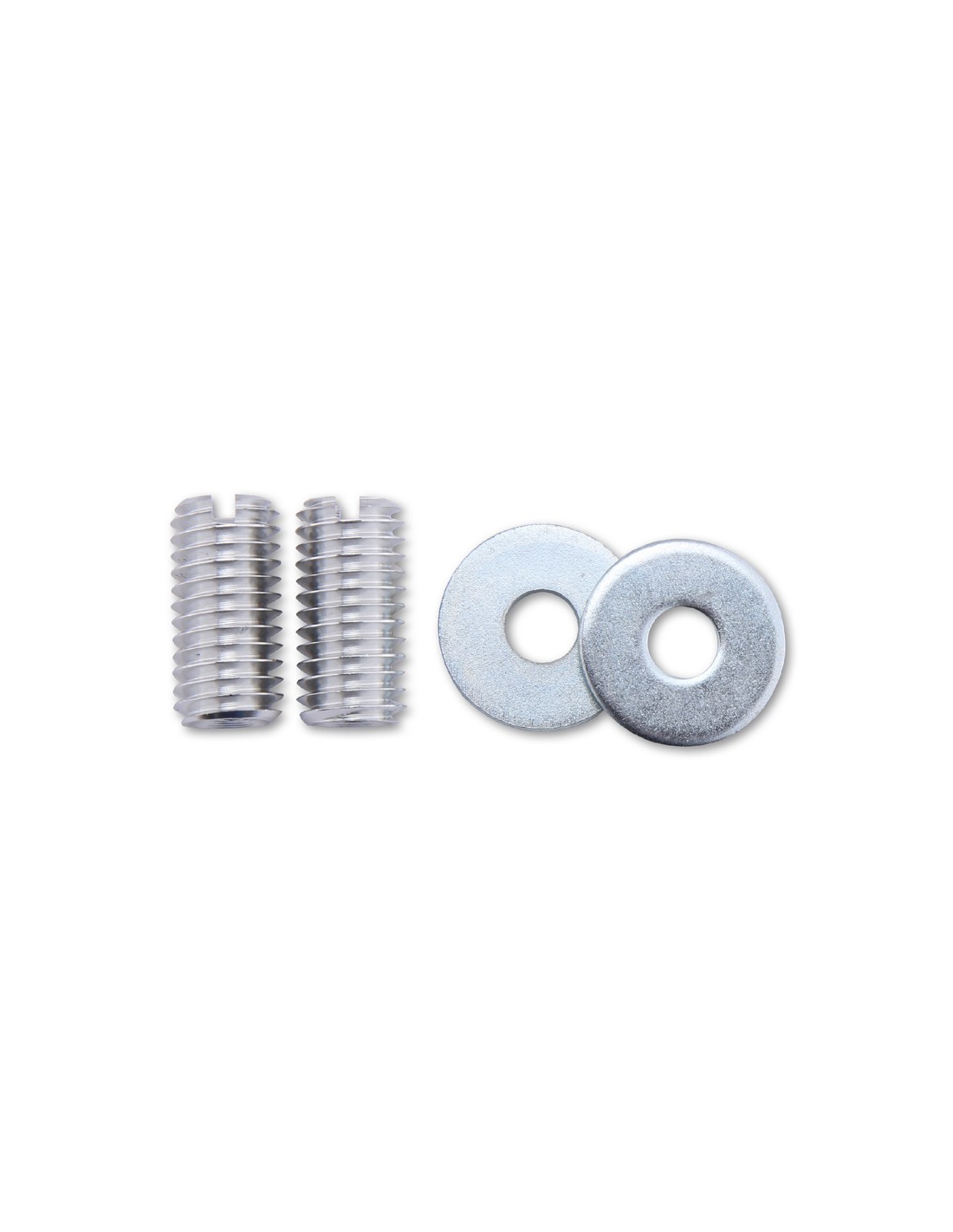

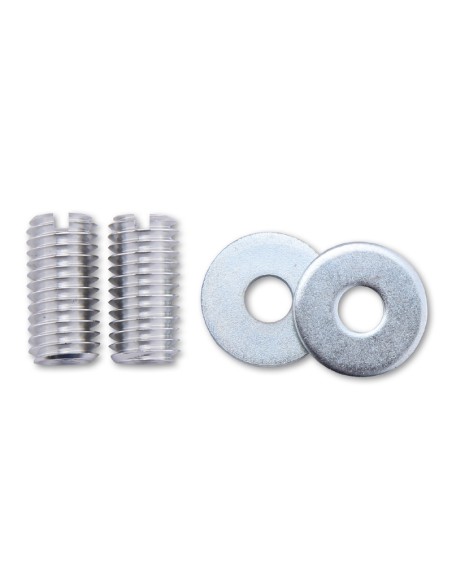

Scope of supply:
2 x Threaded sleeves
2 x Washer

NOTE:
For some BMW motorcycle models it may happen that HIGHSIDER handlebar end mirrors WITH integrated LED indicators are not suitable.
The handlebar end mirrors with LED indicators can also be mounted to the BMW original handlebars with the adapter kit by omitting the expansion sleeve.
If the handlebar end mirror is not wide enough in the handlebar screws, there is too much distance between handle and attachment.
